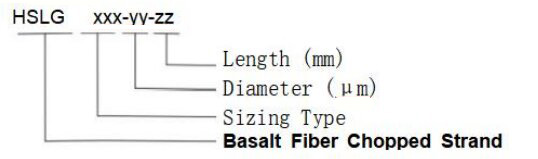

Suitable for dense-graded asphalt concrete (AC), stone matrix asphalt (SMA), open-graded friction course (OGFC), fiber seal coat and other asphalt concrete pavements. Product Series Naming
Example ：HSLG-612-17-8
Product Introduction

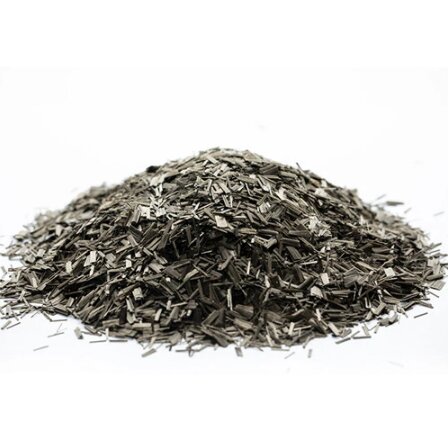

Basalt chopped yarn is made from continuous basalt fiber through special surface treatment and fixed-length cutting. As a competitive alternative to polyester fiber, lignin fiber in asphalt concrete, it significantly improves high-temperature stability, low-temperature crack resistance, water damage resistance and fatigue resistance, greatly extending the service life of asphalt concrete.
Specifications and Performance
| fibre type | length(mm) | nominal diameter of filaments(μm) | linear density(tex) | density (g/cm³) | Oil adsorption ratio(%) | breaking strength (MPa) | elasticity modulus (GPa) | elongation at break(%) | Combustible material content(%) | heat resistance(%) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| bituminous concrete | bituminous mortar | ||||||||||
| Direct Roving | 5~15 | 3~6 | 13~22 | 300~2400 | 2.6~2.8 | ≥50 | ≥1200 | ≥75 | ≤3.1 | 0.1~1.0 | ≥85 |
| twisted yarn | 3~15 | - | 300~2400 | ||||||||
Note: Customized production of other specifications and sizes of basalt chopped yarn is available
Reference standard: Ministry of Transport Transport Industry Standard JT/T 776.1-201 "Highway Engineering - Basalt fiber and its products - Part 1: Basalt Chopped fiber" - Industry Standard of the People's Republic of China JTG F40-2004 "Technical Specifications for Construction of Highway Asphalt Pavement"
Molding Process
Basalt fiber chopped strand yarn is a product made by cutting continuous basalt fiber filaments through special surface treatment.
Product superiority
Improve the utilization efficiency of asphalt and reduce oil sepage. The dynamic stability has been enhanced, and the high-temperature rutting resistance has been improved by more than 30%.
Packaging specification
Packaging standard: 25Kg per bag Packaging material: Waterproof cowhide bag
